HIGH-SPEED FOLD-UP DOORS

Discover our high-speed fold-up doors: a reliable and functional access solution, offering the maximum in quality and security!

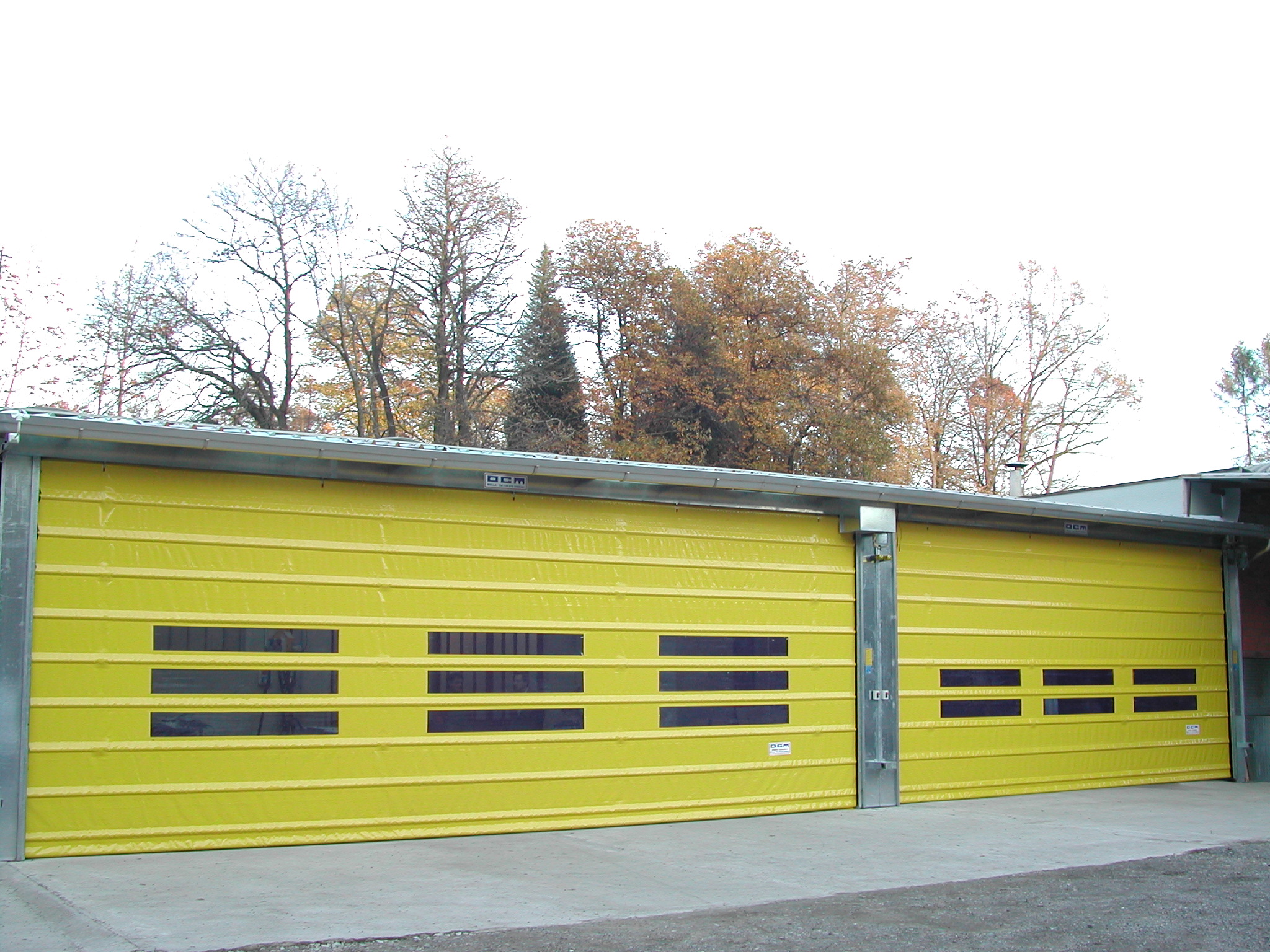

High-speed fold-up doors are rapid doors, designed for intensive daily use, specially created to facilitate the fast and safe movement of both work equipment and people from one work environment to another.

The gearmotor moves and controls the action of the curtain, which is flexible and made of PVC-coated polyester fabric, equipped with several horizontal bars that guarantee high resistance to wind load, weathering and great strain.

The high opening and closing speed limits heat and cooling loss, both in winter and summer: excellent thermal, acoustic and environmental insulation are assured, allowing economic savings in terms of air conditioning and the improvement of workplace conditions.

KEY STRENGHT

The high-speed folding door type is ideal for both indoor and outdoor environments, thanks to the frame robustness and solidity, for medium to large sized rooms.

Thanks to our technology and the three-phase self-braking industrial motor, our doors guarantee a fast vertical opening and subsequent closing.

APPLICATIONS

Our high-speed fold-up doors are the ideal solution for your traffic-intensive work areas: being more efficient in terms of operating speed, they help to improve productivity.

For what concerns safety, great attention was paid to the design phase, which resulted in the doors being stopped when people and/or things are passing at the same time by means of two effective solutions: an electro-conductive rubber edge positioned inside the lower bar of the curtain and an infrared photocell device.

Furthermore, our doors are customisable in materials, finishes, colours and accessories, made to measure and adaptable to any Customer needs.

HIGH-SPEED FOLD-UP DOORS INFORMATION SHEET

HIGH-SPEED FOLD-UP DOORS

AVAILABLE VERSIONS

DOORS

FOR THE LOGISTICS INDUSTRY
Our high-speed fold-up doors for the logistics industry provide high performance for intensive use to optimise your production activities.
Find out more

DOORS

FOR LARGE COMPARTMENTS

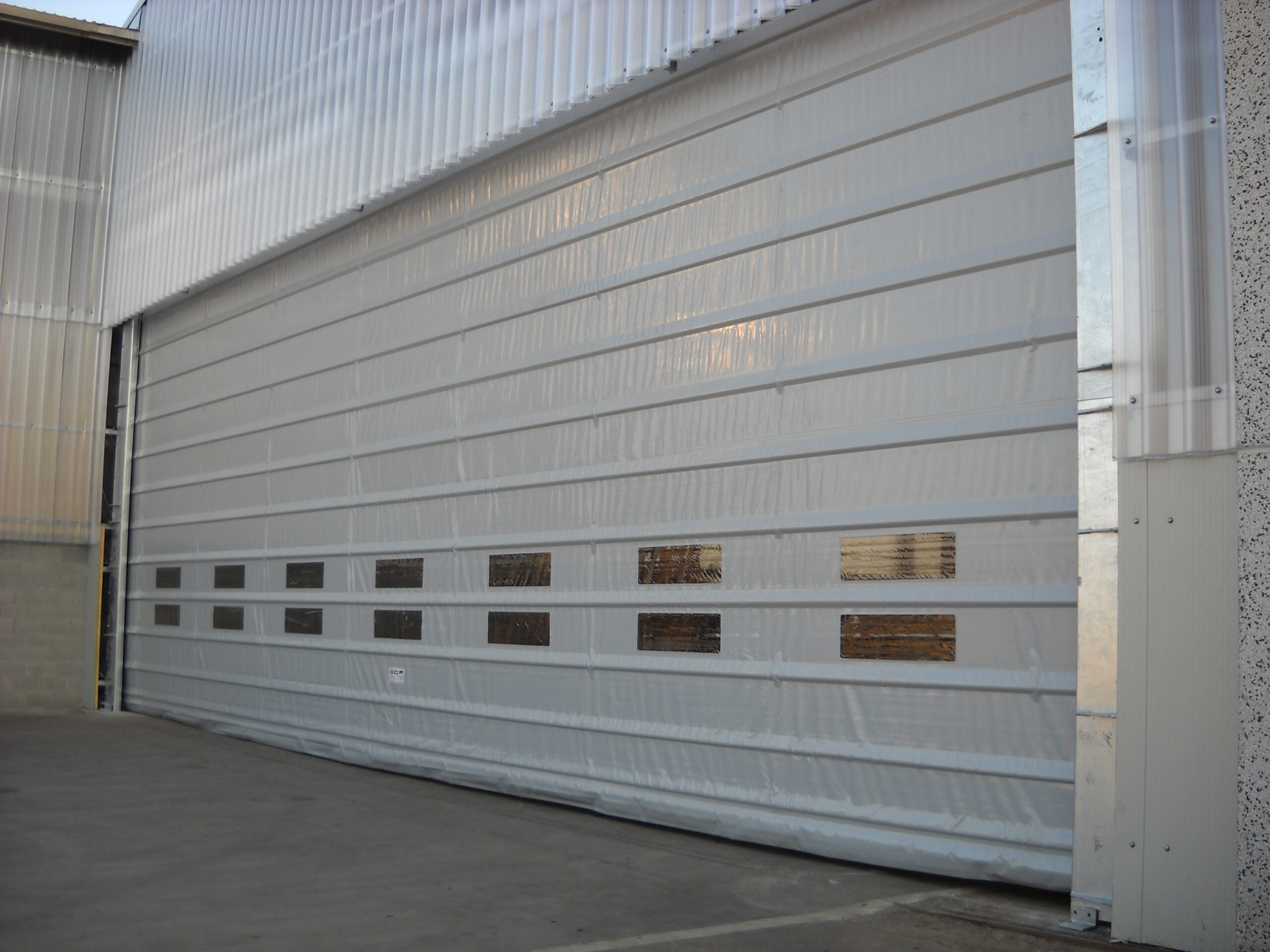

Our high-speed fold-up doors allow large compartments to be closed, ensuring maximum resistance to adverse weather conditions.
Find out more

DOORS

FOR OVERHEAD CRANES
Our fold-up doors are designed to divide rooms with overhead cranes in order to allow easy passage for moving materials.
Find out more

OCM HIGH-SPEED FOLD-UP DOORS

3 GOOD REASONS TO CHOOSE OCMFLEX

In-house production

Our products are designed and manufactured entirely in Italy at our Biella factory.

Team of Engineers

Team of engineers, designers and specialised technicians at your service to propose the best solutions.

Network of Agents

A network of agents in Italy and abroad is constantly expanding.

TECHNICAL FEATURES

Made up of galvanised steel (as standard), AISI 304 stainless steel or RAL painted (on request) columns and upper crossbeam with side runners equipped with nylon brushes in order to minimise the passage of air through the door.

A three-phase self-braking geared motor with integrated rotary limit switch that determines the opening and closing speed; it can be placed laterally (as standard) or frontally (on request).

QT500/7 MODEL: pre-wired, equipped with electronic board with terminals.

Motor/control panel/photocells connecting cables and accessories already in place.

400 Vac 50 Hz three-phase.

Up to 2 m/s depending on size.

Flexible, tear-proof, self-extinguishing and fire resistant curtain made of PVC-coated polyester.

Wind load resistance:

  • Class 1: for doors installed indoors
  • Class 2, 3, 4, 5: for doors installed outdoors

Security device that can also be used as an opening device, consisting of several infrared beams and an anti-exclusion system.

It enables the detection of objects or people close to the door, ensuring maximum safety and avoiding dangerous situations.

  • Protection class: IP 67
  • Operating temperature: -10 / +60 °C

Door equipped with all useful elements for quick and easy installation.

Doors can be fitted with the following optional accessories:

  • REMOTE CONTROL: a radio receiver with one or more hand-held transmitters to open one or more doors;
  • RADAR: microwave motion device with adjustable options;
  • METAL DETECTOR: with one or more coils below the transit floor connected to a sensor that detects metal objects and opens the door;
  • PHOTOCELL: placed at a certain distance from the door, it generates an opening command when obscured;
  • PUSH BUTTON: for pedestrian opening to partially open the door;
  • PULL SWITCH: long galvanised steel arm with high mechanical strength;
  • BADGE SYSTEM READER FOR ACCESS CONTROL AND DOOR OPENING: available in magnetic card or tag versions;
  • INDUSTRIAL TRAFFIC LIGHT: with red and green LED lights.

Doors comply with effective regulations, in particular with European standard EN 13241 and are CE-marked.

COLOURS

The curtain is supplied in different weights according to requirements:
  • standard curtain = weight: 900 g/m²; thickness: approx. 0.8 mm, wide range of colours available
  • double PVC curtain = weight: 1800 g/m²; thickness: approx. 1.6 mm, wide range of colours available
  • insulated curtain = weight: 1300 g/m²; thickness: approx. 4 mm, colours available: grey, white, blue
  • double insulated curtain = thickness: approx. 5 mm, sponge layer between two panels of 900 g/m² each, available colours: grey, white, blue

CUSTOMIZATION

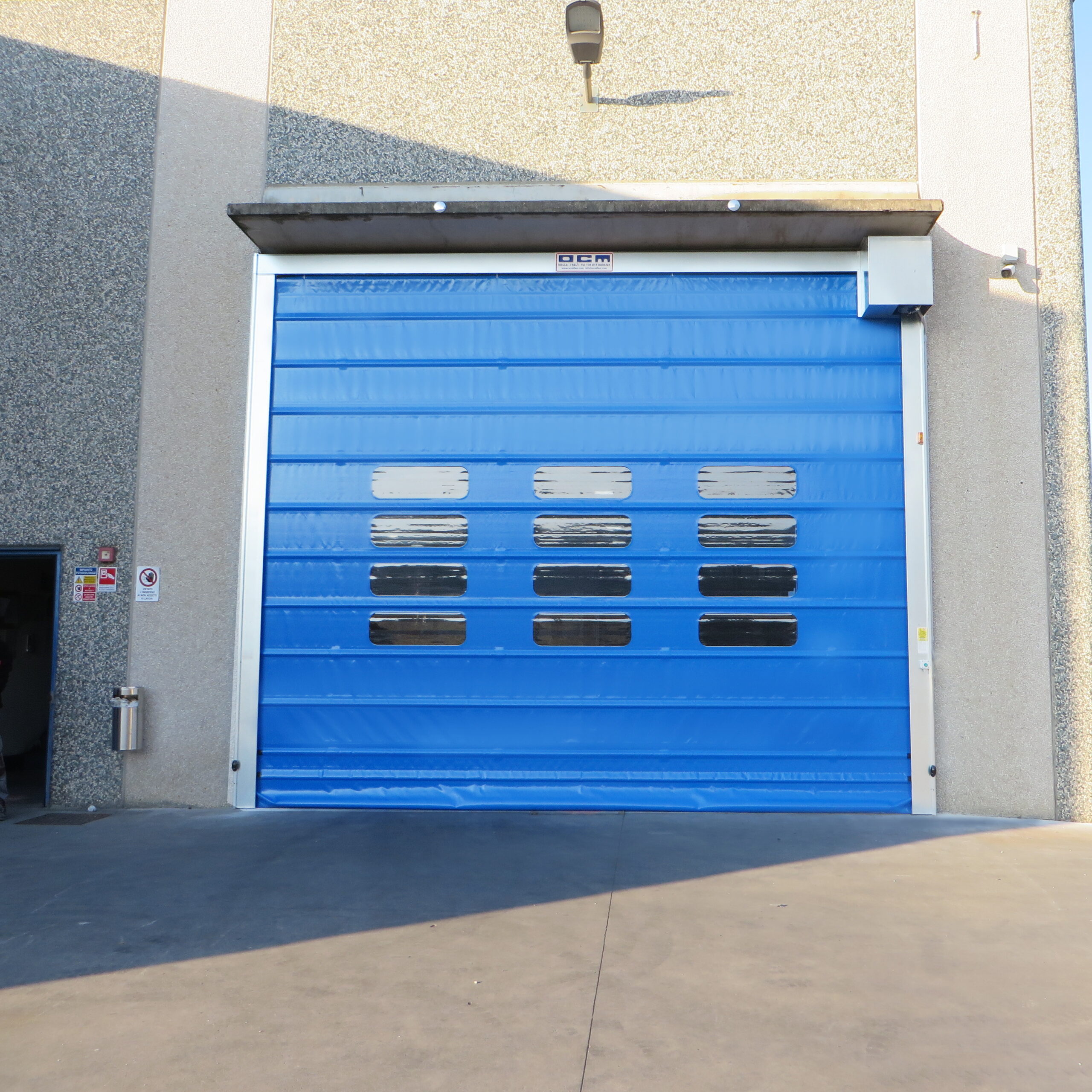

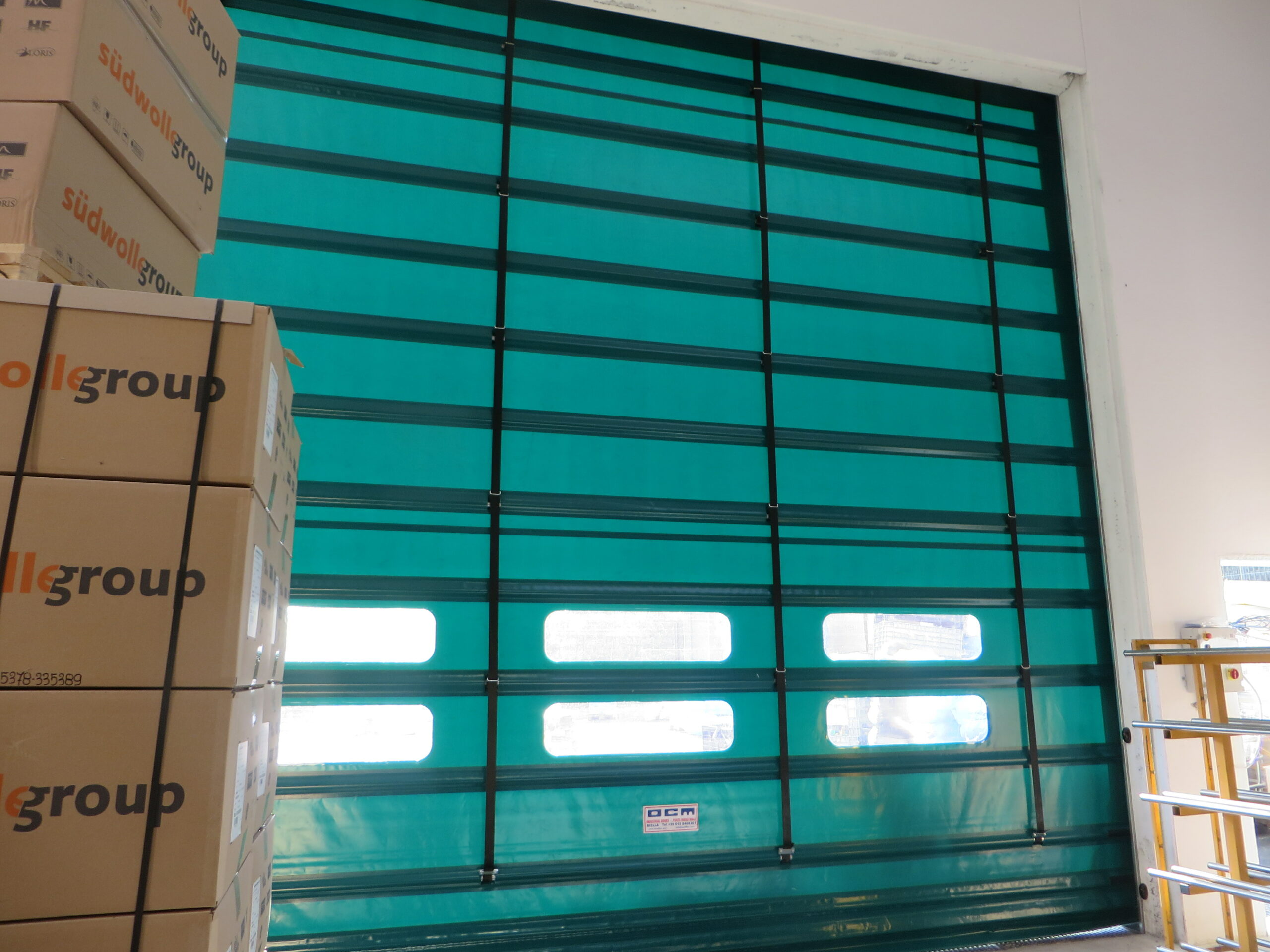

The curtain can be customised with the Customer’s logo or by printing an image. In addition, some transparent portholes can be inserted to improve transit visibility: two or more, placed in each section of the curtain. There is also the possibility of inserting mesh sections:
  • porthole-shaped
  • curtain entirely made of perforated mesh fabric
  • RAL 1015 – ivory
  • RAL 6026 – green
  • RAL 1021 – yellow
  • RAL 2004 – orange
  • RAL 8017 – brown
  • RAL 3002 – red
  • RAL 5002 – blue
  • RAL 5012 – light blue
  • RAL 7038 – grey
  • RAL 9005 – black
  • RAL 9016 – white

More colours are available on request.

ADVANTAGES

Why install high-speed fold-up doors

Increased accessibility

Improved flow of people and vehicles.

Wind load resistance

Excellent wind resistance.

Customization

Wide range of materials, finishes, colours and accessories available to meet any Customer needs.

Energy savings and
workflow optimization

Maximum heat loss reduction
thanks to opening and closing speed.
